Peak-to-average power ratio of signals

  To launch labAlive simulation applications you need a Java Runtime Environment supporting Java Web Start on your system. Here you can get more information about installing the right Java version.

The Peak-to-average power ratio (PAPR) of a signal is the peak power divided by the average power.
PAPR=xpeak2Sx=x^2xeff2

Crest factor
C=PAPR



Waveform PAPR PAPR|dB

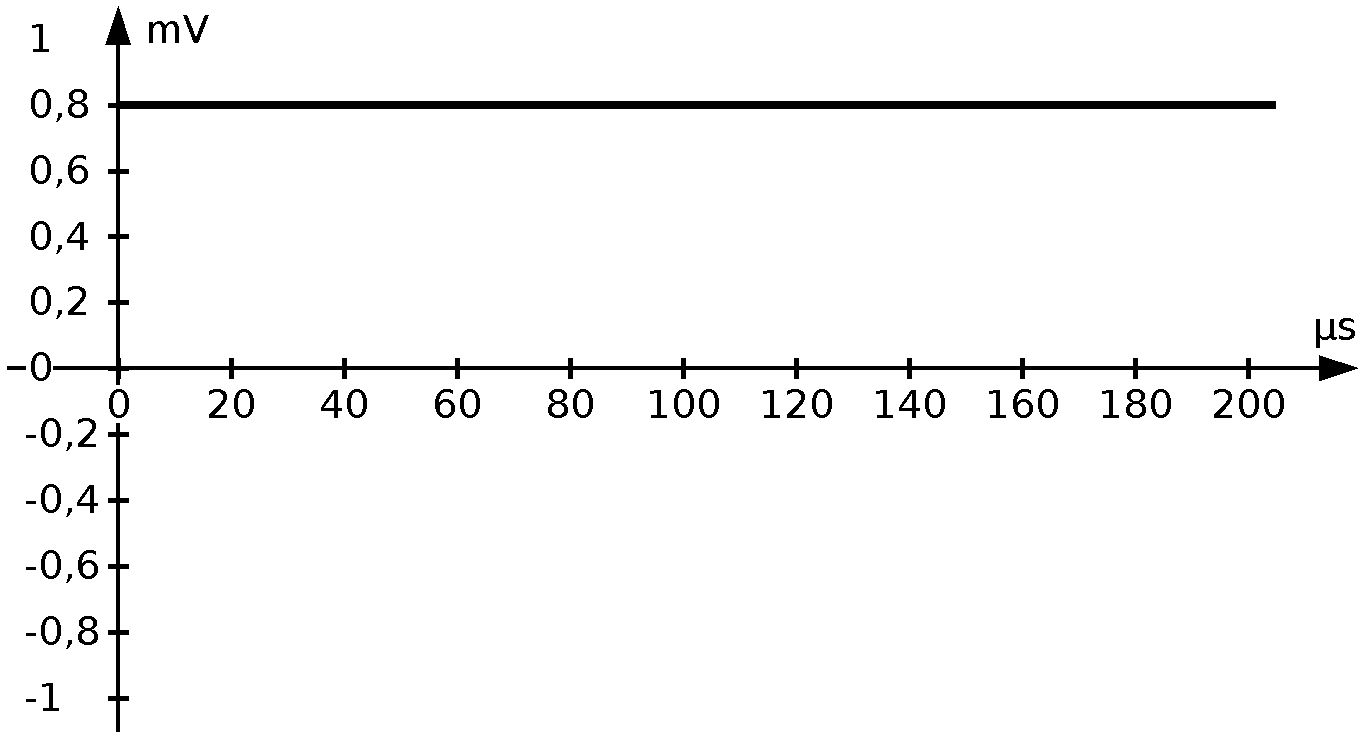

DC
DC
1 0 dB

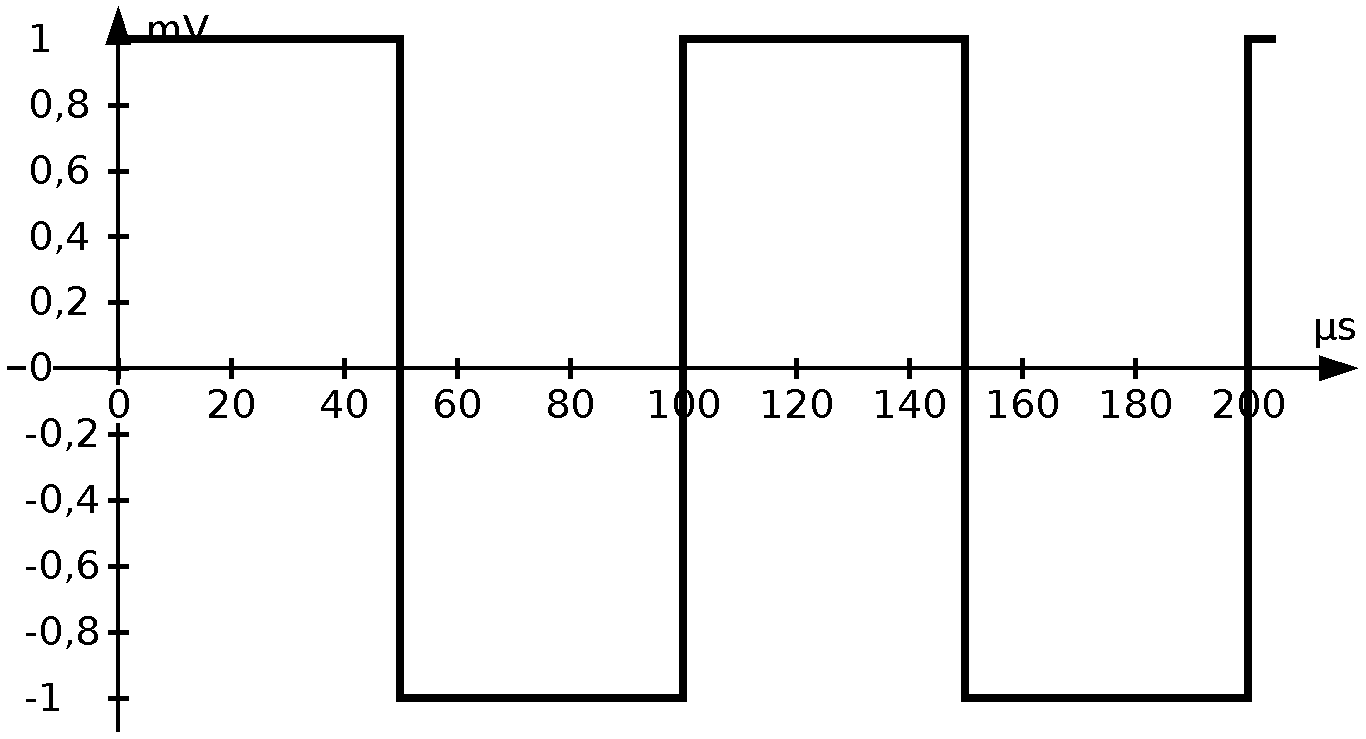

Square
Square
1 0 dB

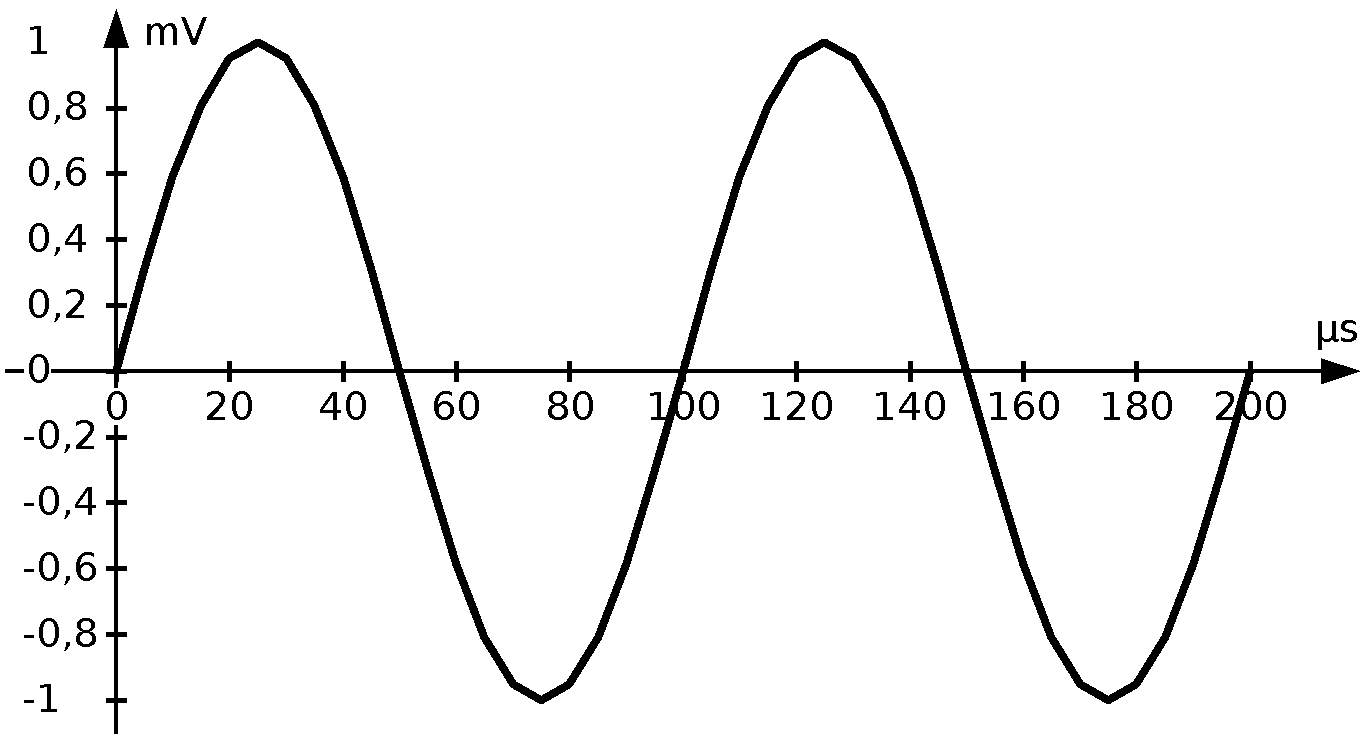

Sine
Sine
2 3,01 dB

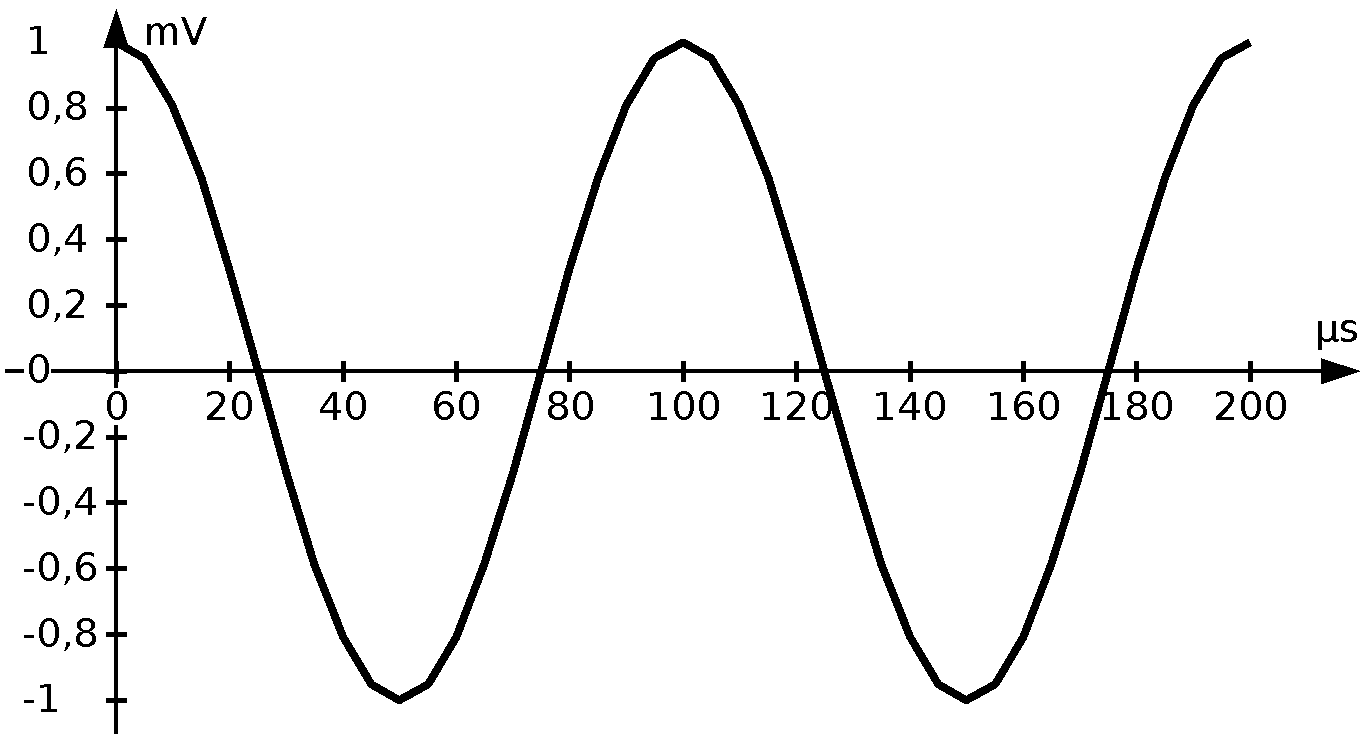

Cosine
Cosine
2 3,01 dB
Triangle
Triangle
3 4,77 dB

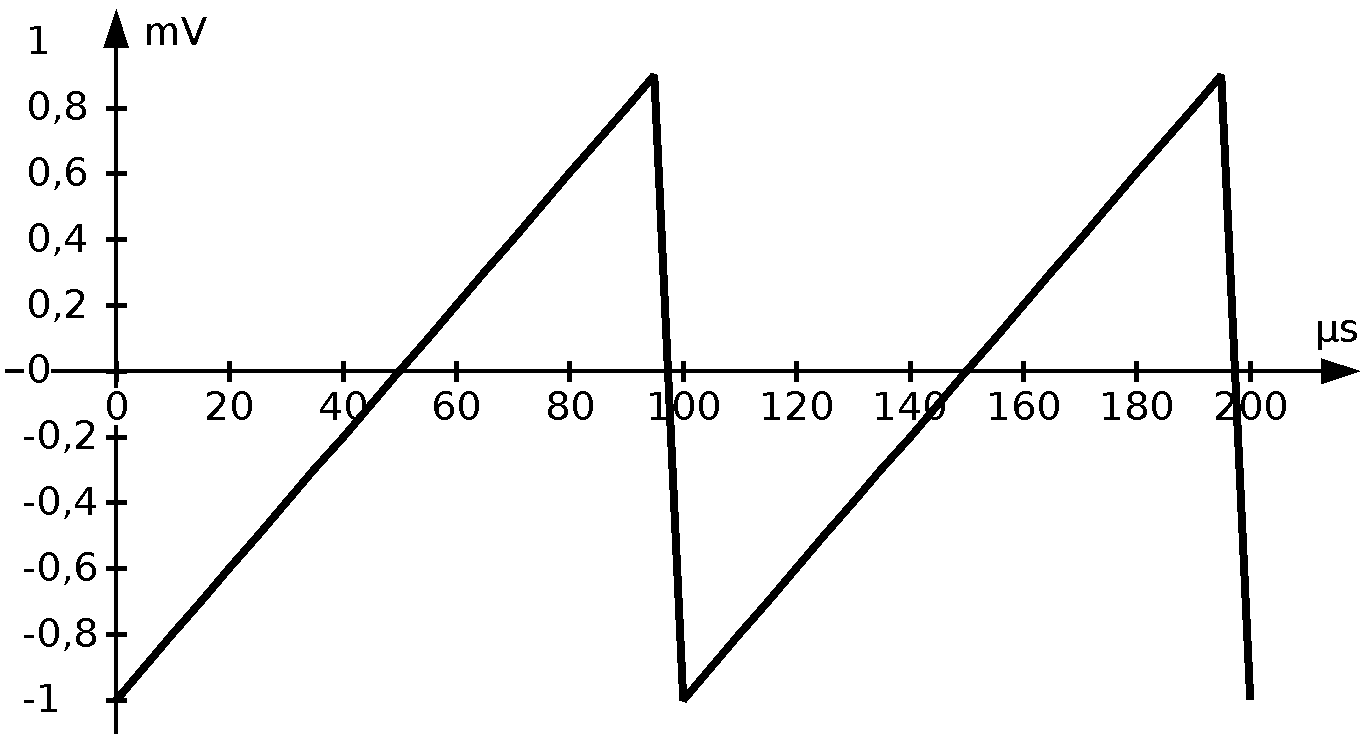

Sawtooth
Sawtooth
3 4,77 dB

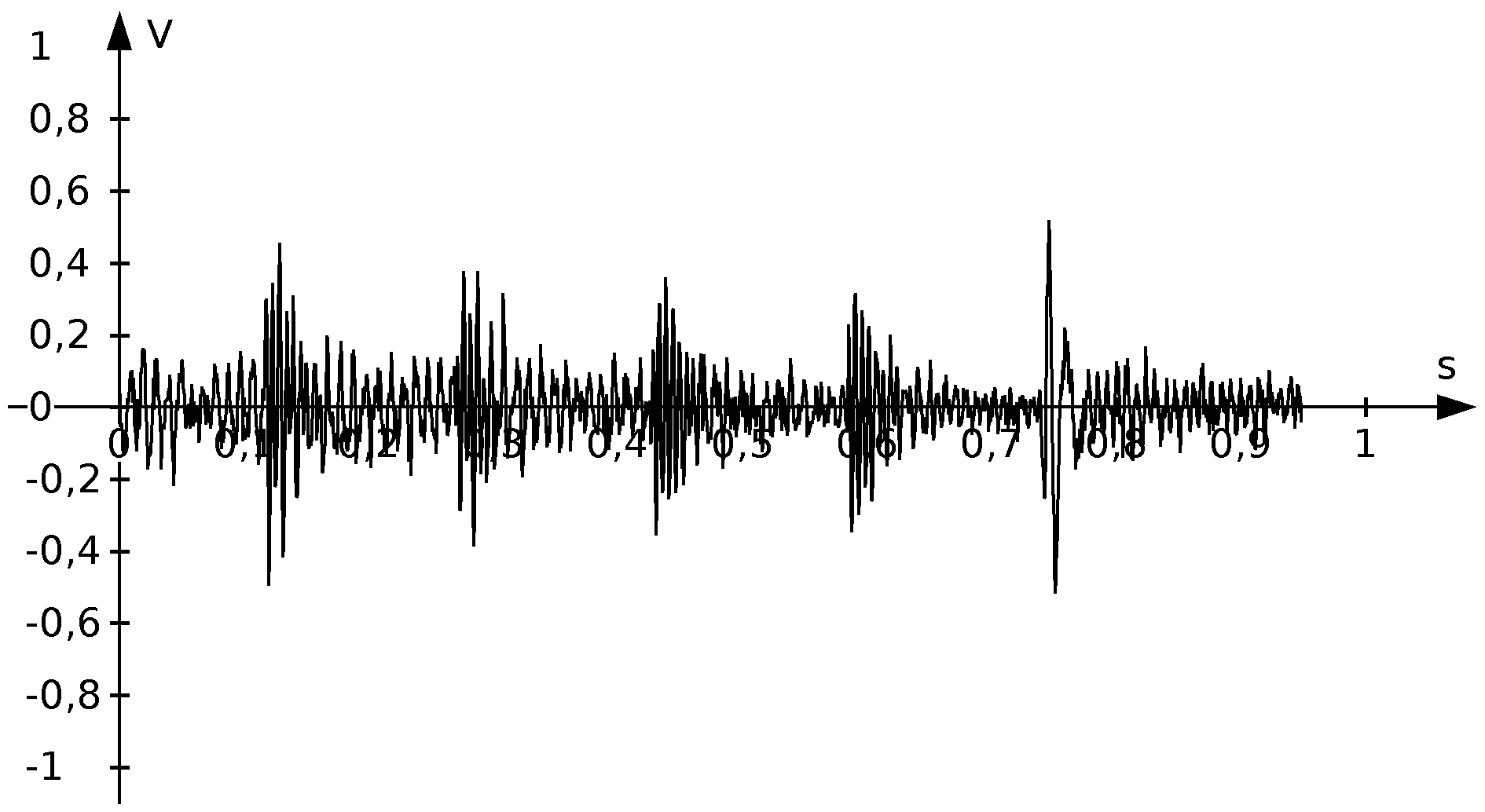

Audio signal
Audio signal
80 19 dB

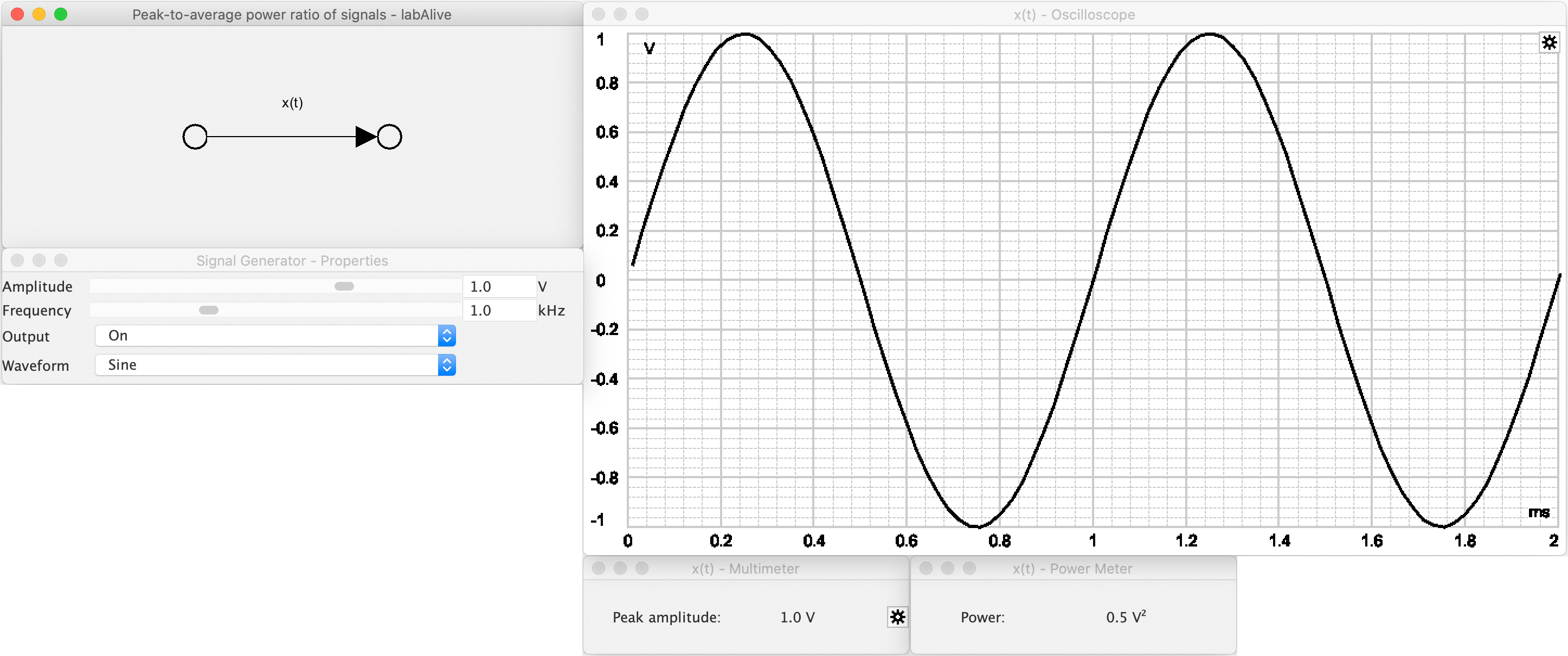

Peak-to-average power ratio
Peak-to-average power ratio (PAPR)

Each wave form has its particular PAPR value. Measure for different wave forms the peak amplitude and the time-averaged power. Determine the PAPR of this wave form.
